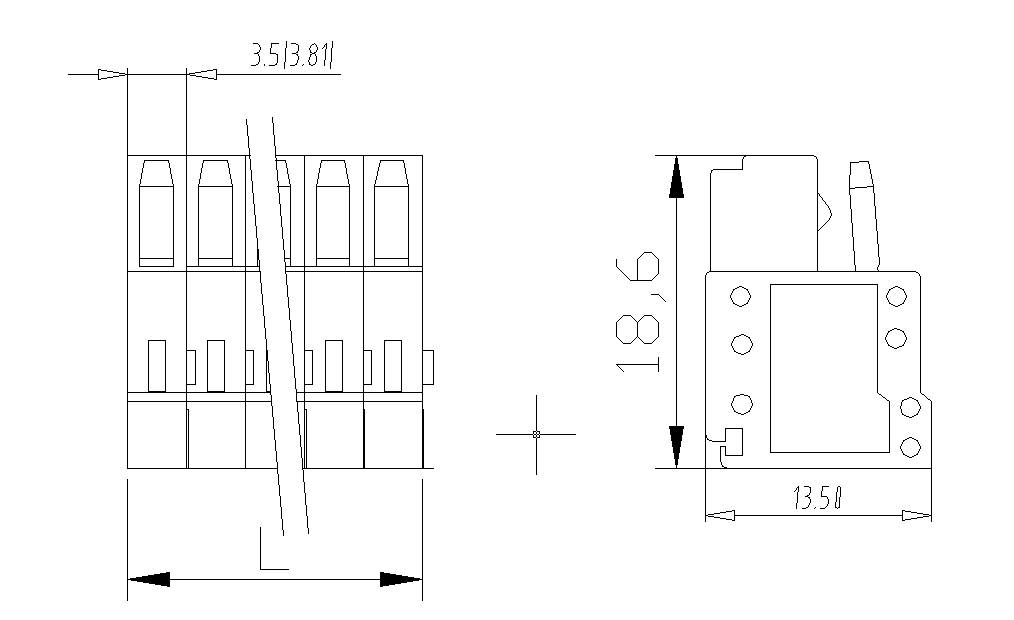

TCK3.5/3.81 series female connector
model | TCK3.5-XXP; TCK3.81-XXP | ||
bit spacing | 3.5mm/3.81mm | ||
number of digits | 2-24P | ||
Wiring range | AWG/mm 2 | 24-16/0.2-1.5 | |
Technical data | IEC | UL | |
Rated voltage | V | 250 | 300 |
Rated current | A | 10 | 10 |
Rated impulse voltage | KV | 2.5 | |
pollution level | 2 | ||
Insulation Materials | PA66 | ||
Flammability rating | V0 | ||
Applicable ambient temperature | – 40℃~+105℃ | ||
can choose colour | 3.5 pitch (white gray); 3.81 pitch (orange) | ||
Contact material | Phosphor bronze tinned | ||
Shrapnel material | Stainless steel | ||
Wiring | spring clip | ||
Applicable lead | 0.2-1.5 mm 2 types of conductors | ||
Stripping length | 7mm/ 0.28in | ||
TC01(3.5): Crimping tool, made of insulating material, 1 pin, off-white
TC02(3.5): Crimping tool, made of insulating material, 1 pin, off-white
